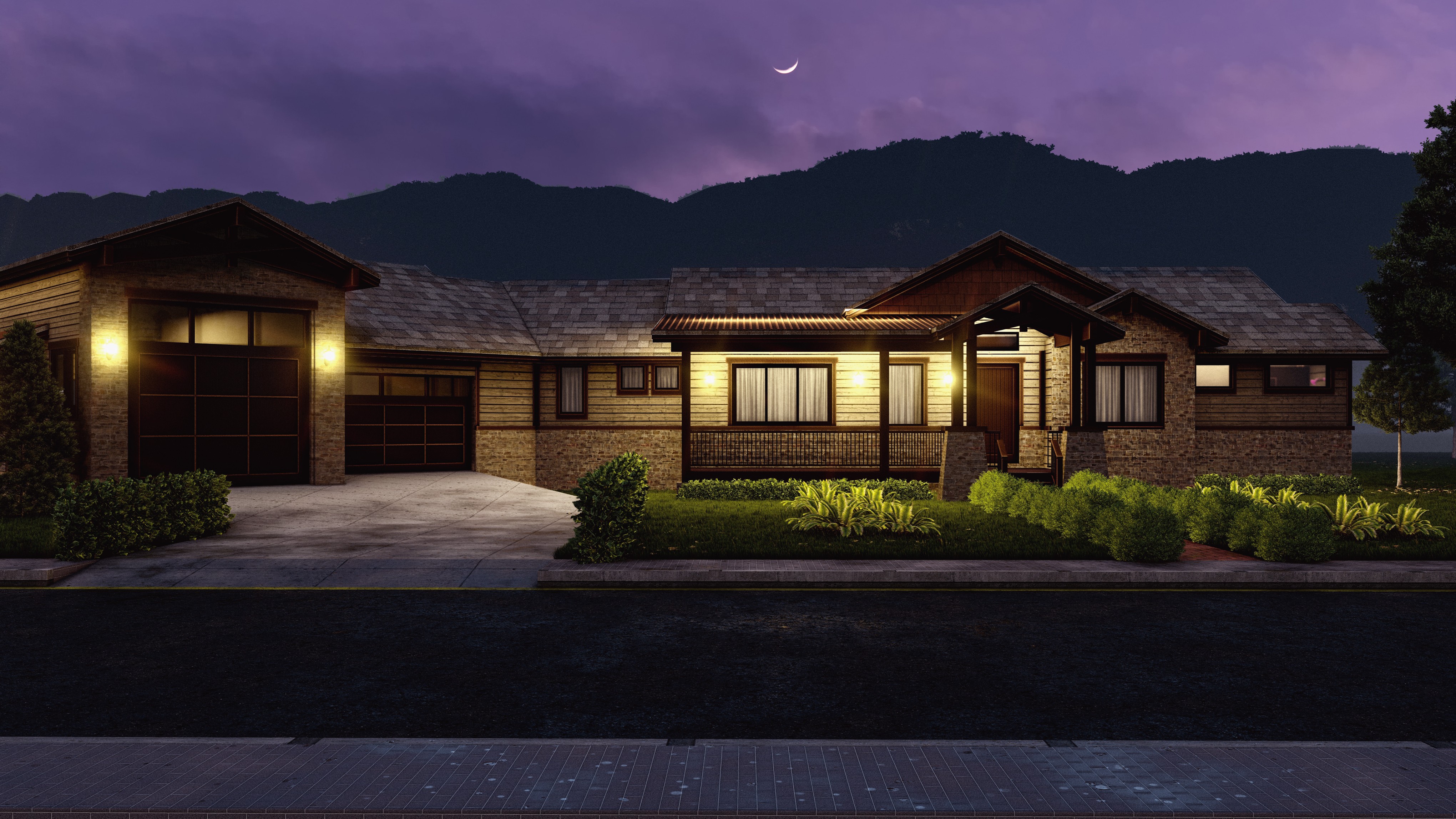

Architect-designed modern ranch-style home with a two-car garage, pitched rooflines, and a welcoming front porch, set against a backdrop of open sky and natural landscape
Architect-designed modern ranch-style home with a two-car garage, pitched rooflines, and a welcoming front porch, set against a backdrop of open sky and natural landscape
Architect-designed modern ranch-style home with a two-car garage, pitched rooflines, and a welcoming front porch, set against a backdrop of open sky and natural landscape

42 Riverwalk Lane.

It is a mountain family retreat designed by our client, who is an Architect. We helped him by producing full (CD) sets to bring it to life.

42 Riverwalk Lane.

It is a mountain family retreat designed by our client, who is an Architect. We helped him by producing full (CD) sets to bring it to life.

Introduction

Chris needed accurate BIM documentation to bring his family's home design to life.

Designing his home near the Rocky Mountains, he had a clear vision—but the rough geography, challenging typography, and limited time demanded precise BIM documentation.


Year

Colorado, USA

Duration

2 Weeks

Square footage

4,250 SF

Categories

Modern single-story wooden cabin with warm interior lights, surrounded by greenery, set against a twilight sky with mountains in the background.
Modern single-story wooden cabin with warm interior lights, surrounded by greenery, set against a twilight sky with mountains in the background.
Modern single-story wooden cabin with warm interior lights, surrounded by greenery, set against a twilight sky with mountains in the background.

Challenges

The rugged site conditions and limited timeline presented significant challenges.

The steep typography and mountain geography demanded meticulous planning, while time pressure left little room for coordination errors.

Solutions

We delivered a coordinated BIM model, resolving the rough site geography and typography challenges under tight deadlines.

We also established a streamlined design workflow, aligning architectural intent with construction precision to keep the project on track.

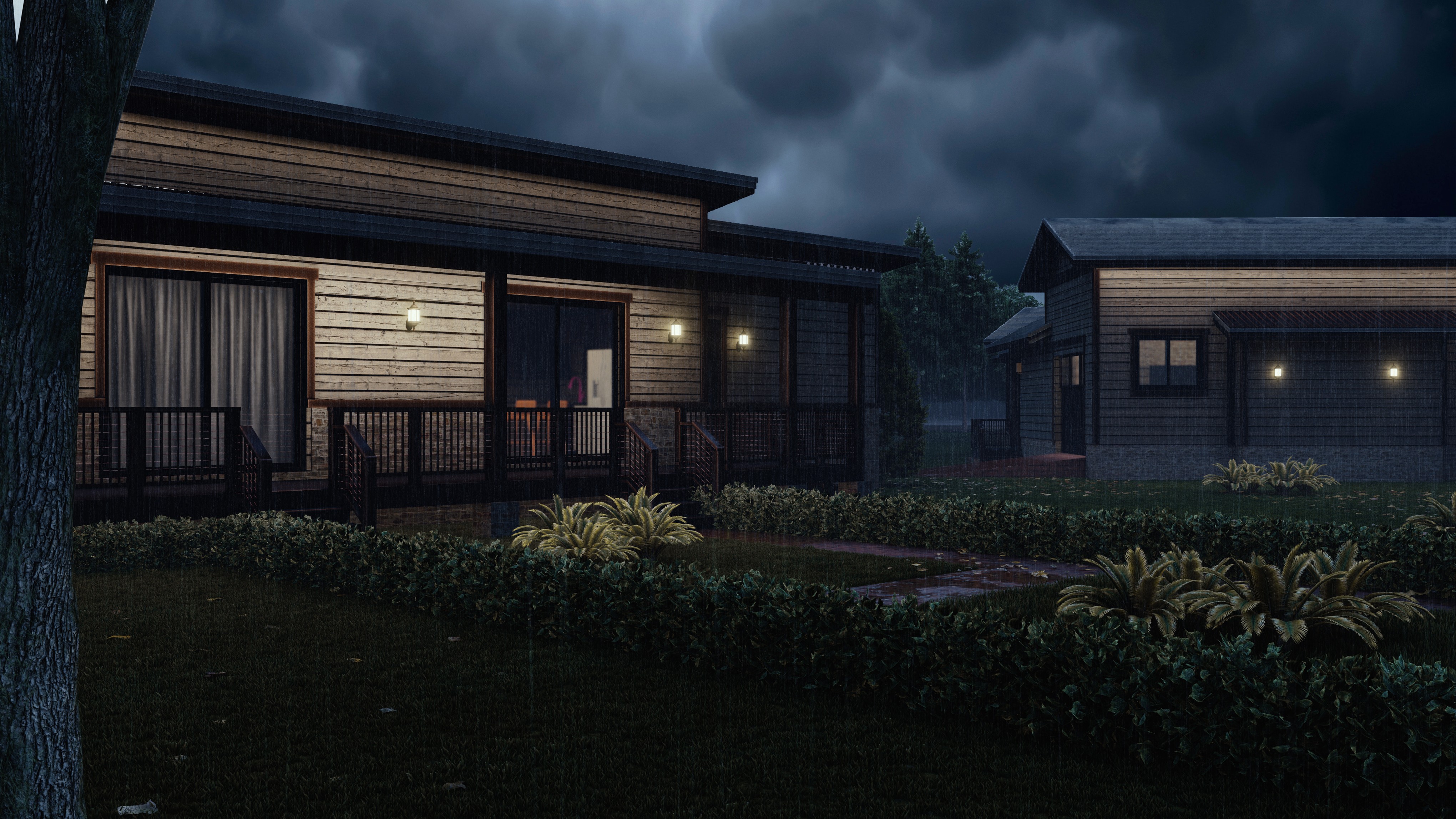

Night view of modern wooden cabins with warm lights glowing inside, set against a dark cloudy sky with landscaped greenery in the foreground.
